Listener

Listener is a pipeline for processing incoming events from external services. Events are received in two ways: via the platform's tracking domain (HTTP) or via RabbitMQ.

Features

• An event can land on any pipe in the pipeline. The id of the initial pipe is specified in the URL to which the external service sends data.
• In the Listener pipeline settings, there is an additional field Response body — a string that the platform will use to respond to incoming HTTP requests.

Event sources

The Listener can receive events from two sources:

HTTP via tracking domain

The external service sends an HTTP request to the platform's tracking domain. Nginx automatically proxies the request to the internal trklistener service.

RabbitMQ

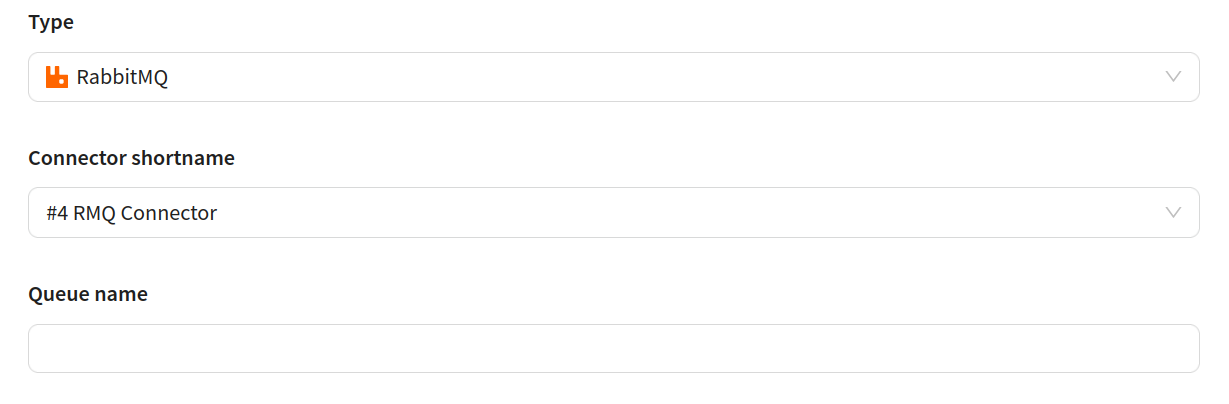

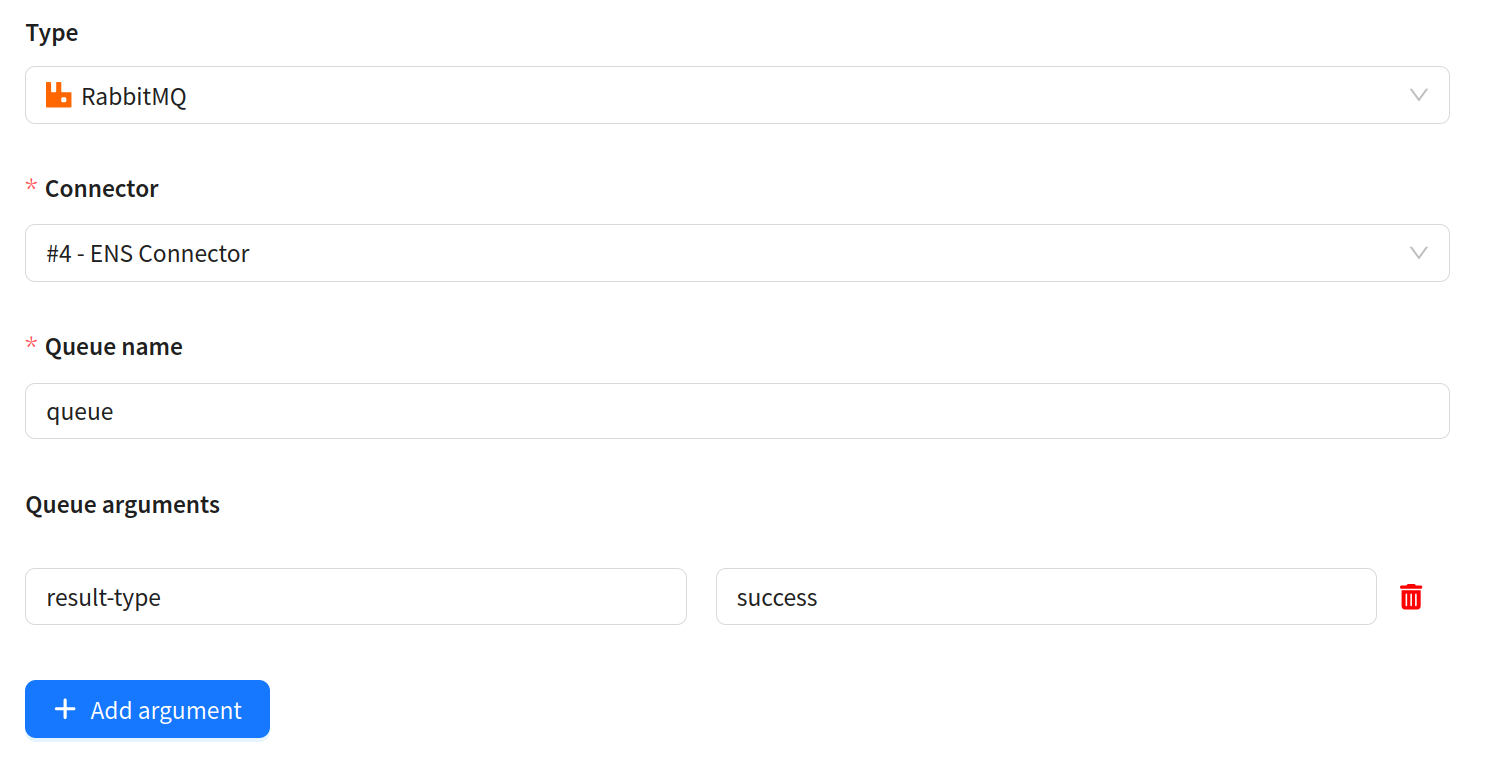

If the external service publishes events to RabbitMQ, the Listener can pull them directly from the queue. To do this, specify a connector and queue name in the Listener pipeline settings:

Field	Description
Type	Connector type. Default is Not chosen
Connector shortname	A connector created in the External Data Configuration section. Default is Not chosen
Queue name	RabbitMQ queue name from which the Listener will pull events

tip

Connector and queue settings are only needed if events arrive via RabbitMQ. If events come via HTTP through the tracking domain, all three fields remain at their defaults (Not chosen / empty).

Data transfer

HTTP request

The external service sends data to the URL:

https://<tracking_domain>/fbp/v1/<custom_channel_sid>/<pipe_id>

Where:

• <tracking_domain> — the tracking domain of your platform (for example, track.yourplatform.com). Confirm with the platform administrators.
• <custom_channel_sid> — the channel's string identifier (String ID).
• <pipe_id> — the id of the pipe in the Listener pipeline where the event will land.

GET parameters of the request are written to $in.form. The request body is written to $in.body as a byte array. To convert bytes into an object, use the Unpack pipe.

RabbitMQ

The RabbitMQ message body is written to $in.body as a byte array. Message headers are written to $in.headers (hyphens in keys are replaced with underscores).

Listener pipeline example

Typical scenario: an external service sends a webhook about delivery status.

[
  {
    "id": 1,
    "type": "unpack",
    "params": {
      "type": "JSON"
    },
    "outs": {
      "success": 2,
      "error": 4
    }
  },
  {
    "id": 2,
    "type": "selector",
    "params": {
      "outs": [
        {
          "query": "('$in.data.status' = 'delivered')",
          "out": 3
        },
        {
          "query": "('$in.data.status' = 'failed')",
          "out": 5
        }
      ]
    },
    "outs": {
      "success": 6,
      "error": 4
    }
  },
  {
    "id": 3,
    "type": "event",
    "params": {
      "channel_id": 10001,
      "action_type": 100002,
      "event": {
        "send_message_id": "$in.form.send_message_id"
      }
    }
  },
  {
    "id": 5,
    "type": "event",
    "params": {
      "channel_id": 10001,
      "action_type": 100003,
      "event": {
        "send_message_id": "$in.form.send_message_id",
        "message": "$error.code $error.message"
      }
    }
  },
  {
    "id": 6,
    "type": "log",
    "params": {
      "message": "[Listener] status unknown: $in.data.status",
      "level": "warn"
    }
  },
  {
    "id": 4,
    "type": "log",
    "params": {
      "message": "[Listener Error] code: $error.code, message: $error.message",
      "level": "error"
    }
  }
]

Here:

1. Unpack (id: 1) — unpacks the webhook body from $in.body into $in.data
2. Selector (id: 2) — branches by status: delivered → pipe 3, failed → pipe 5
3. Eventer (id: 3) — registers delivery (deliv)
4. Eventer (id: 5) — registers non-delivery (undeliv) with error text
5. Log (id: 6) — logs unknown status
6. Log (id: 4) — logs unpacking error
