External Objects (Entities)

An External Object (Entity) is an external entity with which a channel interacts through an API. An Entity allows you to load, create, and edit external data directly from the platform interface when configuring channel content. The retrieved data is then available in the main channel pipelines (Message, Schedule, Listener, Stop, Moderate) through the templating language.

Typical scenario: in the template editor, the user selects a profile from an external CRM, and the data of that profile (name, email, ID) is passed to the Message pipeline for sending to the external service.

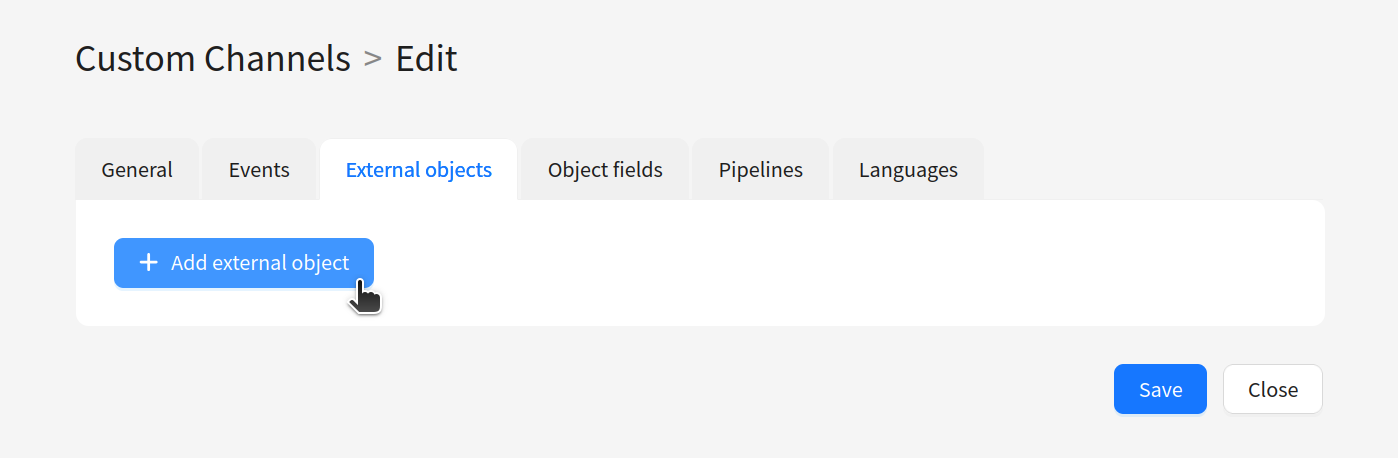

External Objects are created on the External Objects tab when configuring a channel:

Creating an Entity

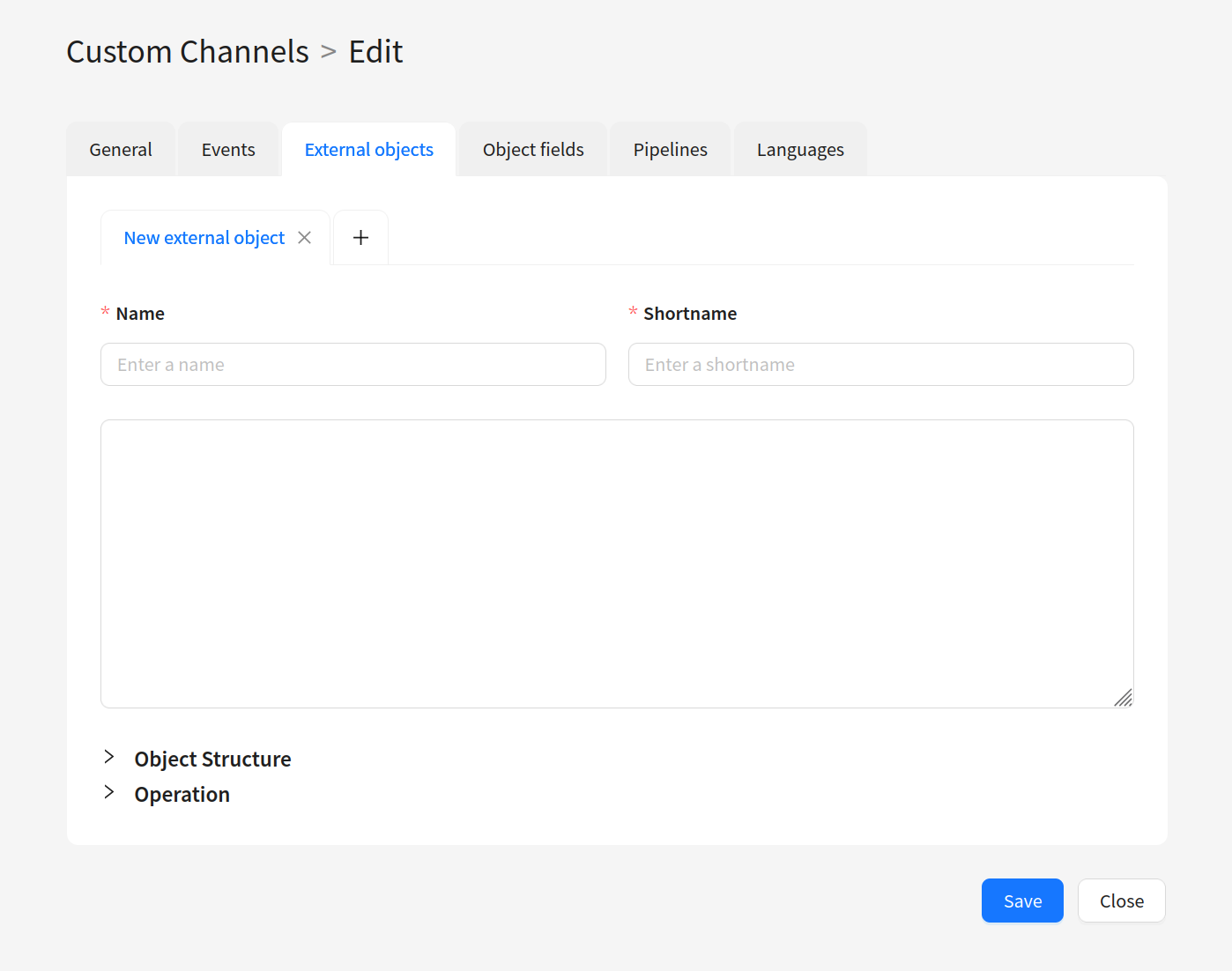

When creating an external object, you need to specify:

Field	Description
Name	Entity name. Displayed in the interface when binding to a channel entity field
Shortname	Unique string identifier. Entity fields will be accessible in pipelines through templating by this name
Description	Brief description of the entity

Object structure

The Object Structure section defines which fields the external API returns and which of them will be available in pipelines. This is a list of fields of different types.

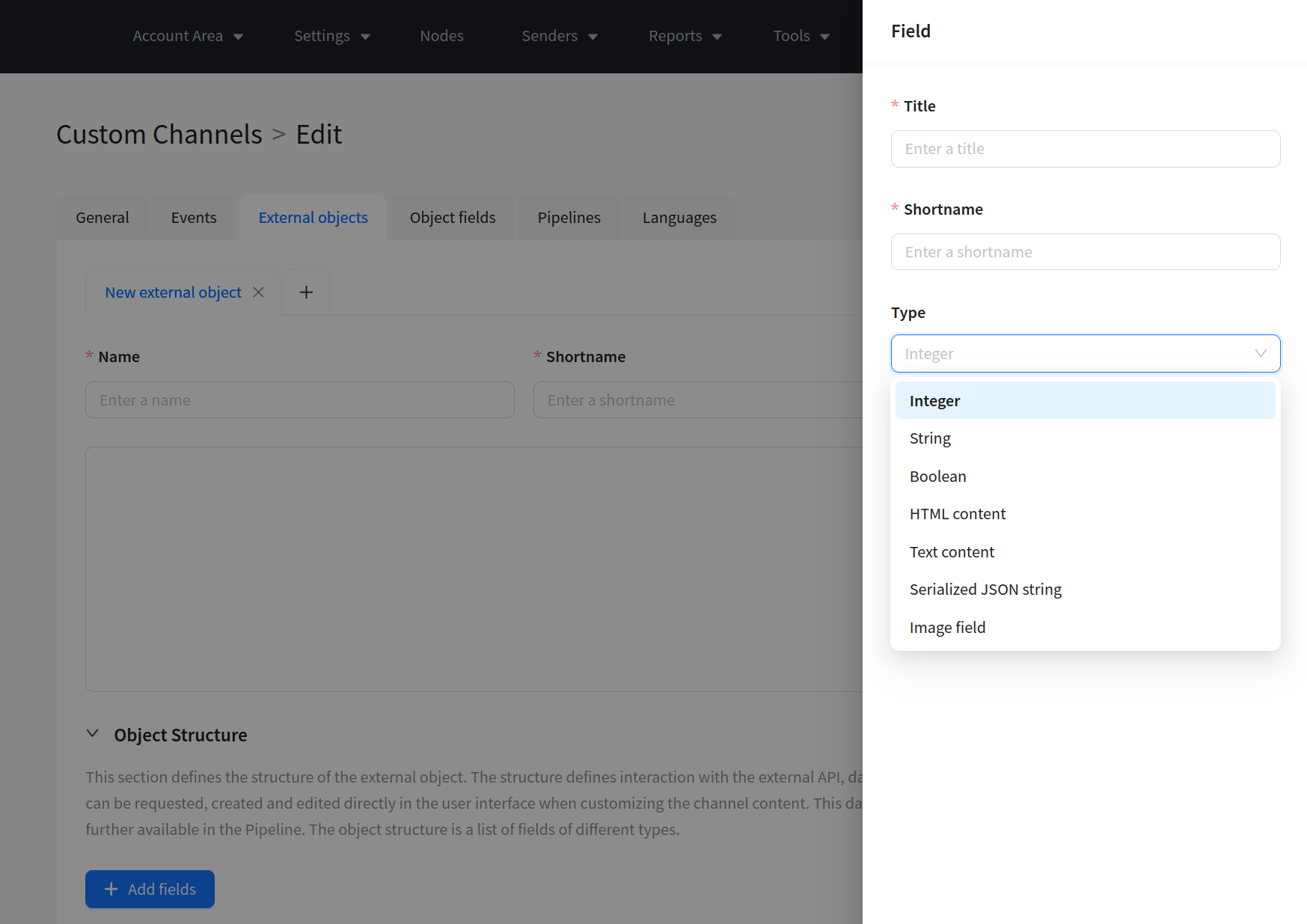

When adding a field (Add Field), the following are specified:

Field	Description
Title	Display name of the field
Shortname	Field name for access in a pipeline through templating
Type	Data type

Available field types:

• Integer — integer
• String — string
• Boolean — boolean value
• Serialized JSON string — JSON object
• HTML content — HTML content
• Text content — multiline text
• Image Field — image

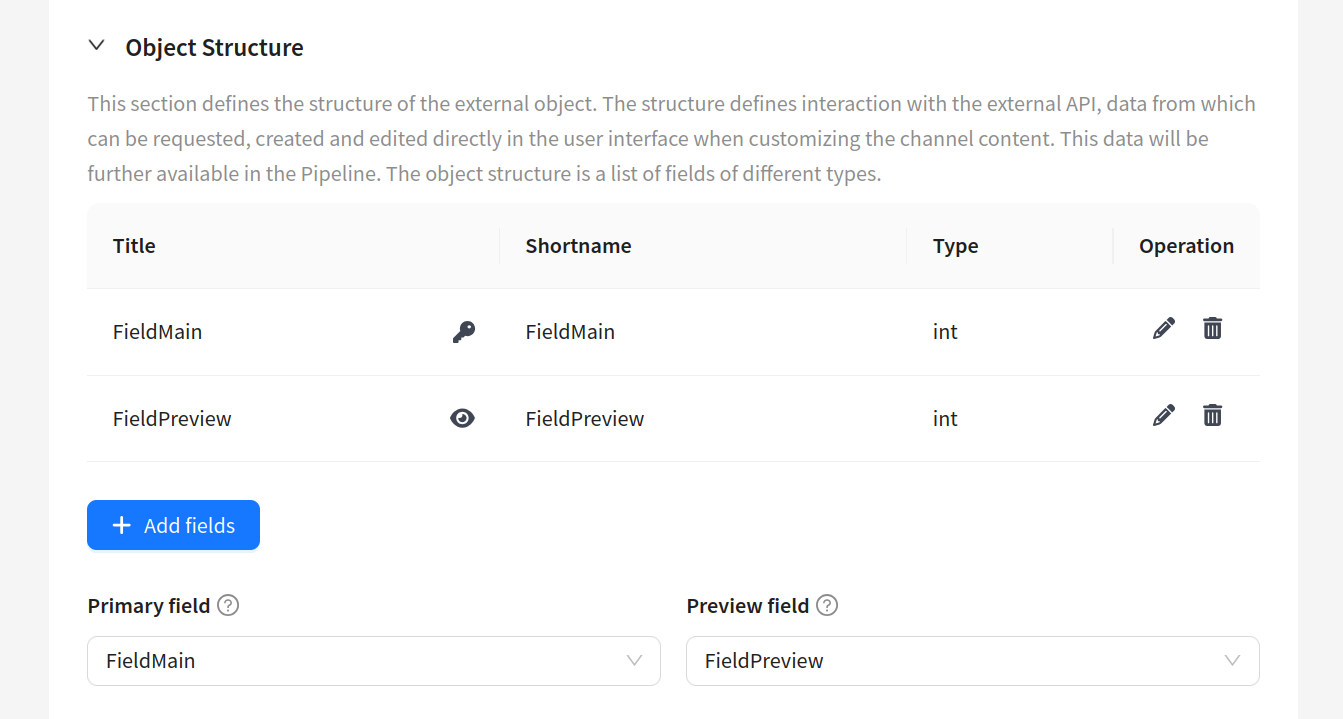

Among the fields, you need to designate a Primary Field (unique object identifier) and a Preview Field. The Preview Field is the field whose value is displayed in the user interface when previewing an entity. If the entity is bound to a screen form in list mode with selection enabled, the Preview Field value will be used to display the selected list items:

All operations must return data that matches this structure (not necessarily all fields, but the ones that are returned must be described here).

Operations

An operation is a method of interacting with an external entity (create, delete, get a list, get a single object, etc.). Each operation consists of input data (Input Fields) and a pipeline.

Available operations

Operation	Returns	Effect on the interface
List	Array of objects	"Add" button in a field with a bound Entity. Opens a table with the ability to select
Read	Single object	—
Create	Single object	"+" (create) button in a field with a bound Entity
Update	Single object	Edit button (pencil) in a field with a bound Entity
Delete	—	Delete button in a field with a bound Entity

Input data (Input Fields)

A set of fields that the user fills in the interface before executing the operation. Input data is not required to be configured. For example, an API token and a database ID — values that may change and that you do not want to hardcode in the pipeline.

Values from Input Fields are available in the pipeline through $in.<shortname>.

Input Field as a filter for SQL.

Often, Input Fields are used to filter data in an SQL query. For example, if a field id is added for the Read operation, you can write SELECT * FROM my_table WHERE id = $in.id in the SQL query to retrieve a specific record by the entered ID.

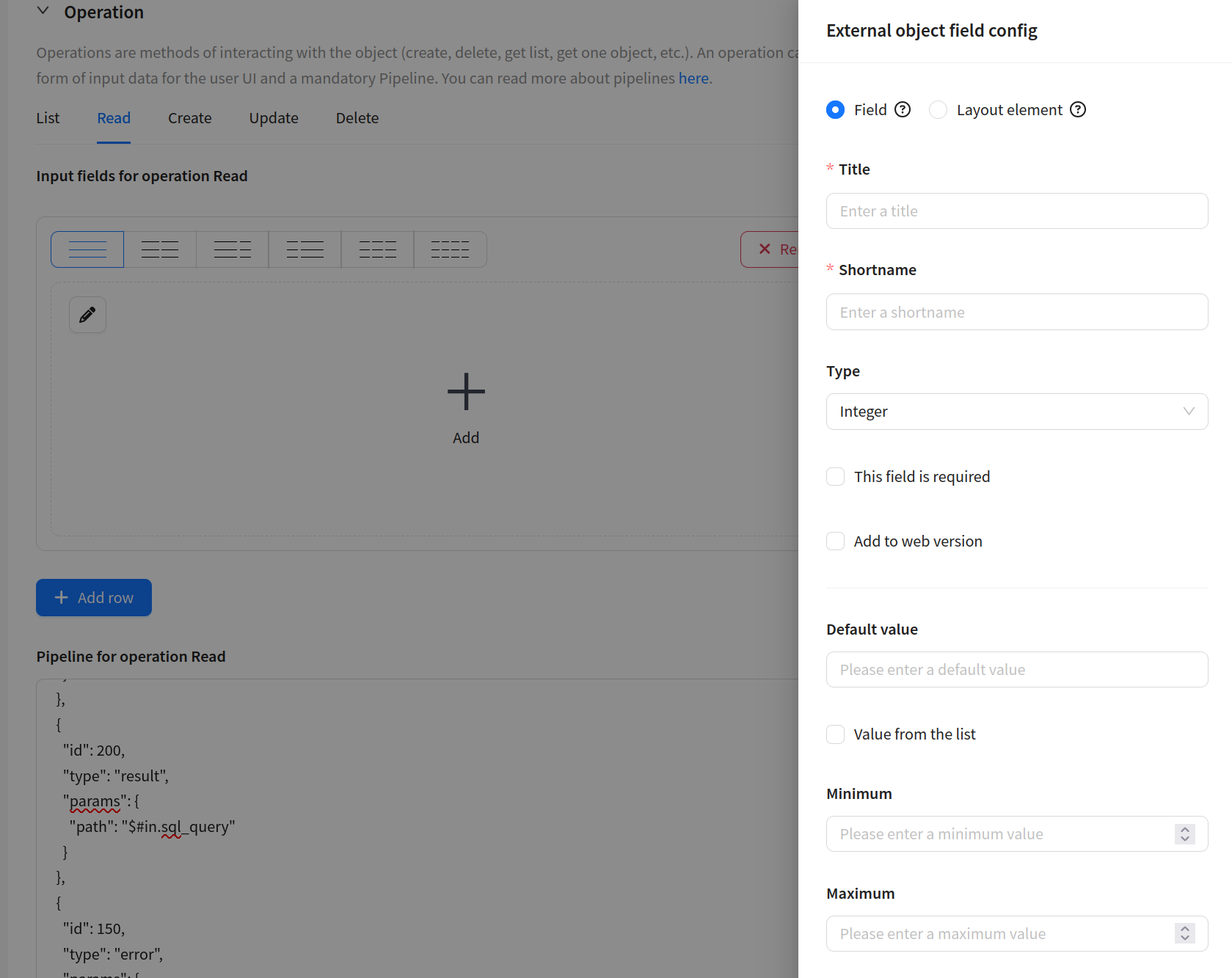

When adding a field (Add Row), you can select a type:

• Field — a data field. Title, Shortname, Type, required flag, default value, value range (Minimum/Maximum), and other parameters are configured.
• Layout element — a decorative element: header (header), text block (message), divider (divider). Does not store data, used for visual organization of the form.

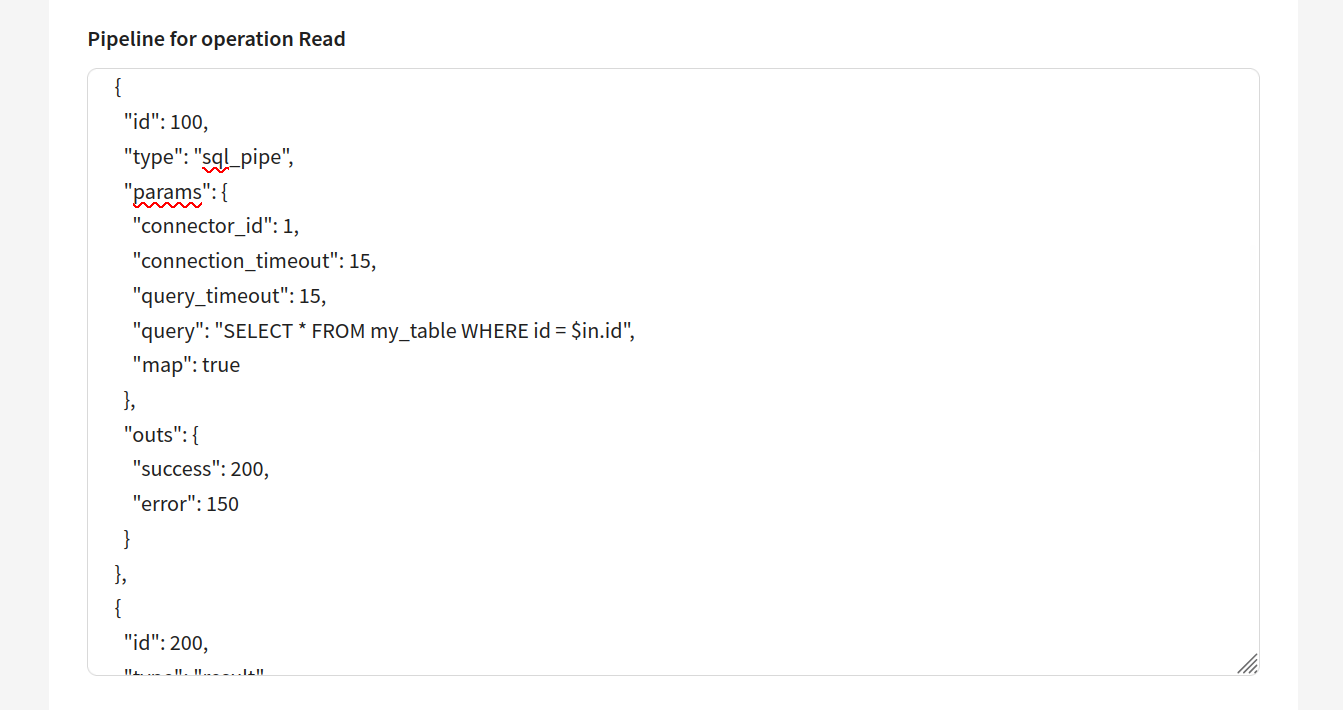

Operation pipeline

A JSON array of pipes that is executed when the operation is launched from the interface. The configuration is similar to other pipelines in the channel, with some nuances. The pipeline is synchronous — the user who launches the operation in the interface will wait for the result.

Available pipe types:

Pipe	Purpose
HTTP Request	HTTP request to an external API
Pack	Pack data into JSON/XML
Unpack	Unpack JSON/XML
Result	Fix the operation result (required)
Error	Terminate with an error
Selector	Conditional branching
SQL	SQL query to the database
Store Set	Save data to storage
Store Get	Read data from storage
Log	Write to log

caution

An event must always pass through the Result pipe before exiting the pipeline (unless exiting through Error).

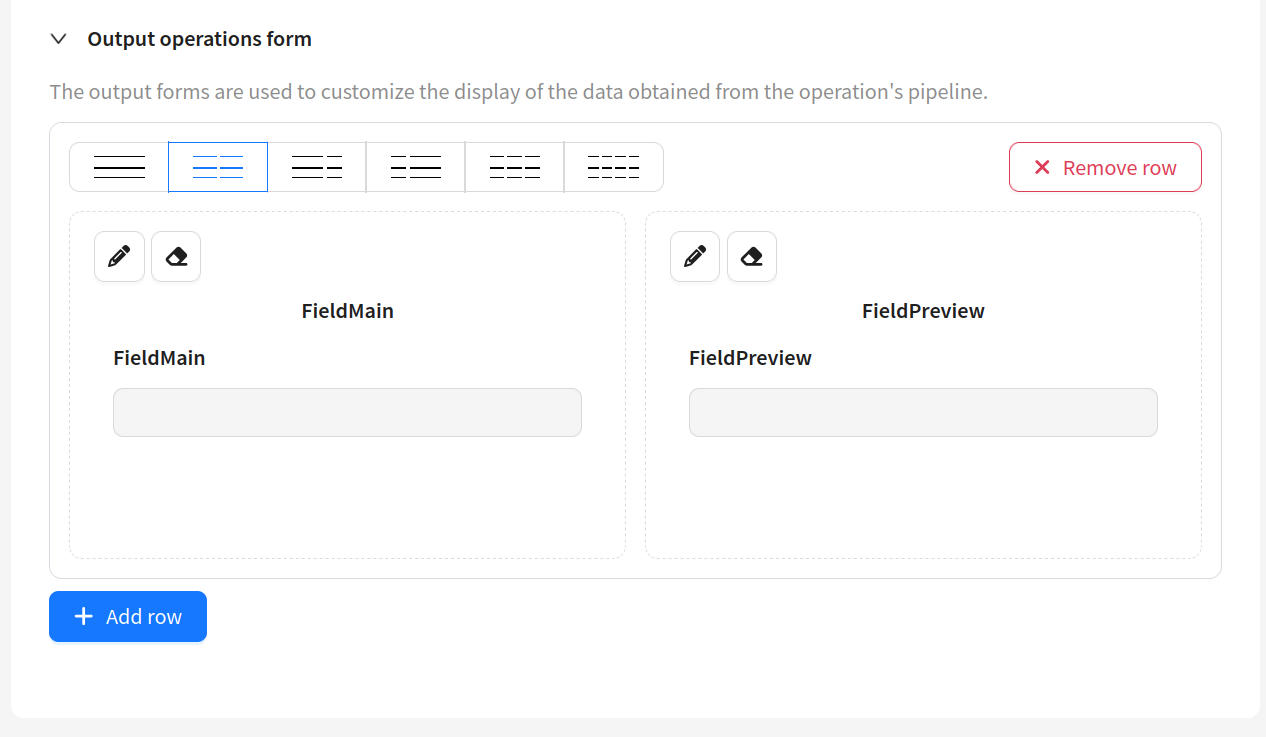

Output forms (Output Operations Form)

An output form defines how the operation result is displayed in the interface. The List form is bound to the List operation, the Single form — to the Read operation.

You cannot create new fields in an output form — you can only select and arrange fields already created in the Object Structure section.

Form	Used for	Description
List	List operation	Table of objects. Fields are selected from Object Structure. The field order in the form determines the column order in the table
Single form	Read operation	Form with fields of a single object. Fields are selected from Object Structure

Fields in the output form are arranged by drag-and-drop.

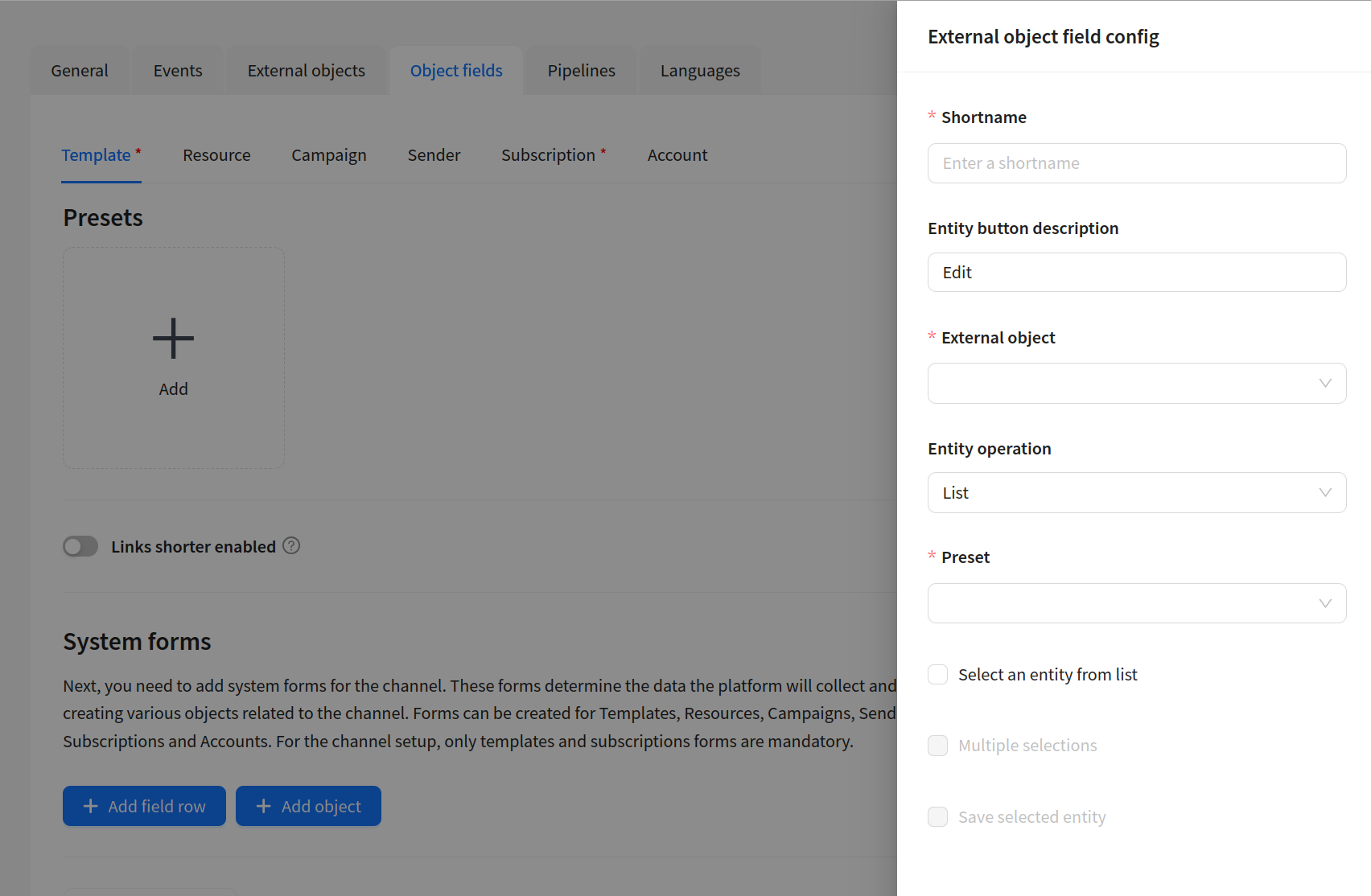

Binding an External Object to a channel entity field

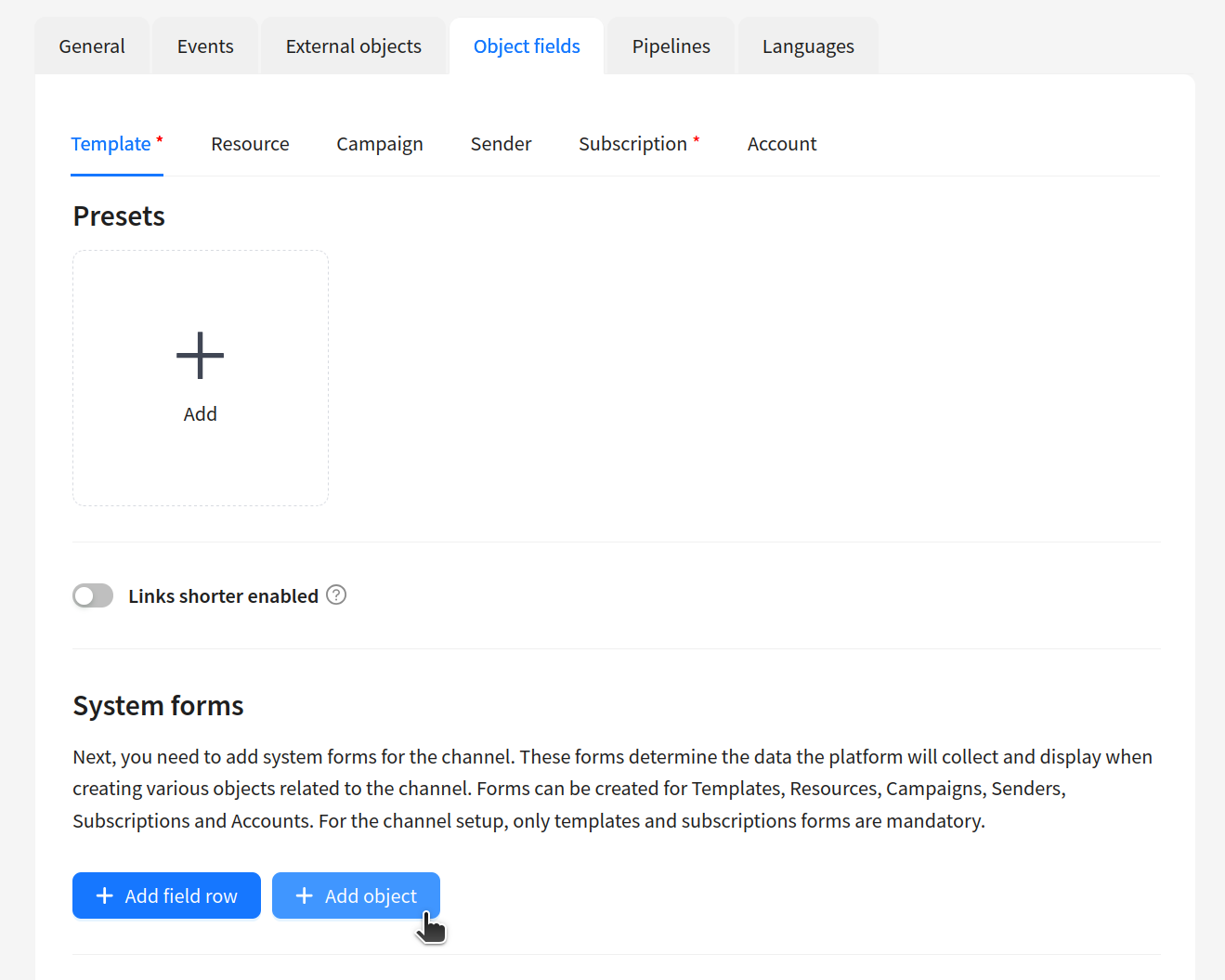

After creating an External Object, it can be bound to a field in the Object Fields section of the channel (on the Template or Campaign tabs, where the Add Object button is available). A field with a bound External Object occupies the entire row in the Layout.

When binding, the following are configured:

Field	Description
Shortname	Name for accessing Entity data in the pipeline (for example, $template.profile). See templating language
Entity button description	Button text in the interface that opens Entity editing (for example, "Select profile")
External Object	Selection of an External Object from the list of created ones
Entity operation	Specifies which operation result (List or Read) will be sent to the sender

Additional settings for the List operation

Field	Description
Select entity from list	If enabled — the user selects objects from the list. Activates the settings below
Multiple selection	Allows selecting multiple objects. If disabled — only one
Save selected entity	Determines whether to save the data when configuring the field, or to load fresh data when launching the mailing

List operation work types

Depending on the Entity binding settings to a field, the List operation works in one of four modes:

Mode	Settings	Behavior
Automatic loading	Without additional checkboxes	All data from List is automatically pulled when the campaign is sent. The user does not select records — the List pipeline executes and returns all data
Single entity selection	"Select entity from list" enabled	The user selects one record from the list. When the campaign is sent, data is pulled through the Read operation by the ID of the selected record
Multiple selection	"Select entity from list" + "Multiple selection"	The user selects one or more records from the list. Each is pulled through Read
Saving at template creation	"Save selected entity" enabled	Data is pulled from the external database when the template is saved and stored in MongoDB, not when the campaign is sent

List + Read connection

For the "Single entity selection" and "Multiple selection" modes, both operations must be configured:

1. List — to display the list of available records (the user sees and selects)
2. Read — to load full data of the selected record by ID

When a record is selected from the list, the platform automatically calls the Read operation with the ID of the selected record. Therefore, Read must be configured with an Input Field (for example, id) and a pipeline that uses this ID for filtering: SELECT * FROM my_table WHERE id = $in.id.

Pipeline examples for SQL operations

Full pipeline examples for all five operations (Read, List, Create, Update, Delete) using the SQL pipe are in the SQL article. Key points:

• Read: map: true + filter $in.id → Result with $#in.sql_query
• List: without map (return array) → Result with $#in.sql_query
• Create: INSERT with $in.<field> → Result
• Update: UPDATE with $in.<field>, WHERE $in.id → Result
• Delete: DELETE WHERE $in.id → Result

Example

Suppose the List operation returned an array:

[
  { "id": 1, "name": "Segment 1" },
  { "id": 2, "name": "Segment 2" },
  { "id": 3, "name": "Segment 3" },
  { "id": 4, "name": "Segment 4" }
]

The user selected Segment 1 and Segment 3. The field will store:

[
  { "id": 1, "name": "Segment 1" },
  { "id": 3, "name": "Segment 3" }
]

In the pipeline, the data can be accessed through templating. For example, if the field is configured in Campaign:

Template	Result
$campaign.segment.%1.name	Segment 3
$campaign.segment	[{ "id": 1, "name": "Segment 1" }, { "id": 3, "name": "Segment 3" }]

If Select entity from list is disabled, the list of data cannot be edited from the interface — all data will be loaded and written to the field automatically by the operation pipeline.
