Firebase Cloud Messaging

Firebase Cloud Messaging Project Setup

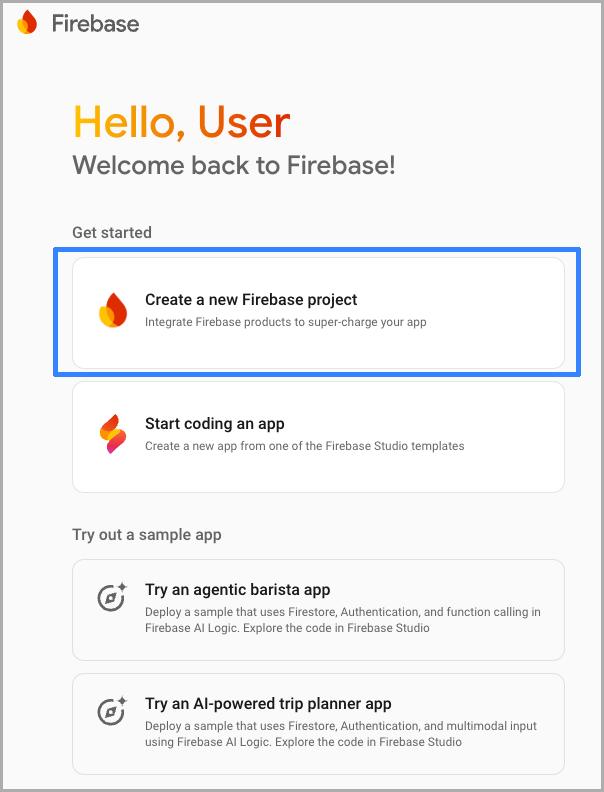

Create a Firebase project:

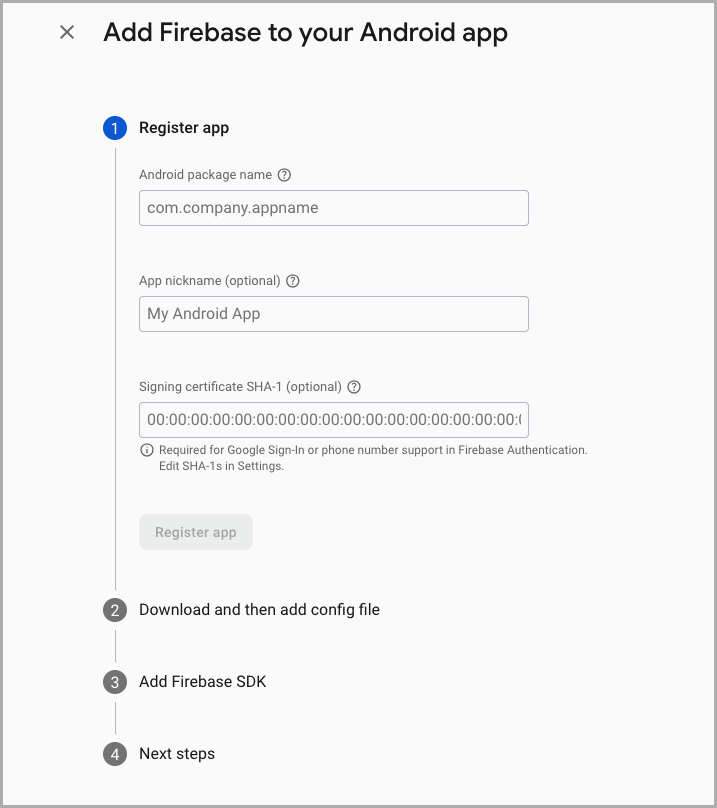

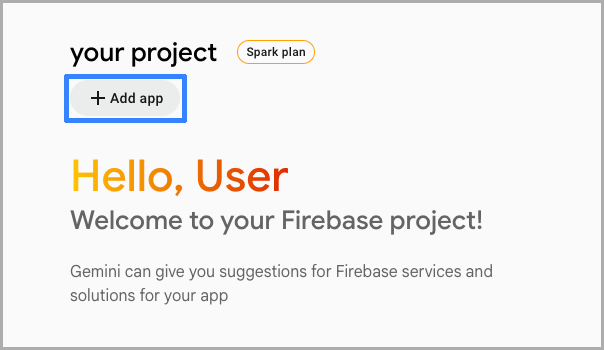

Add your app to the project:

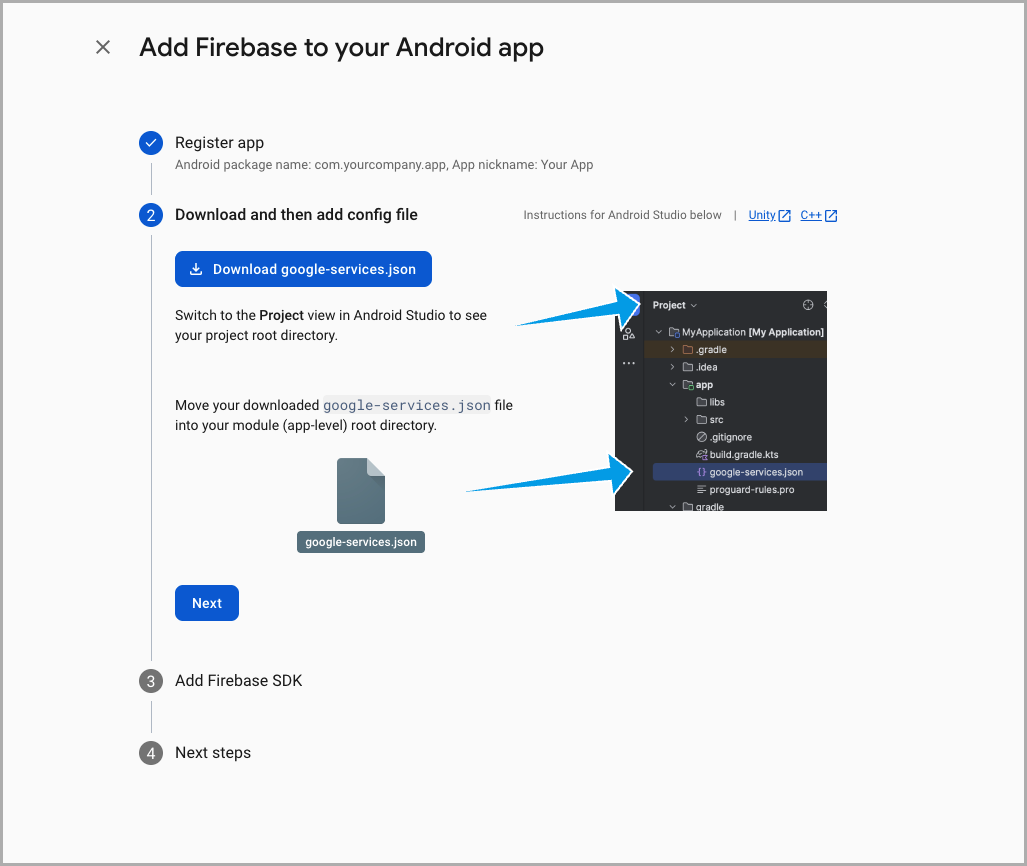

Download the google-services.json file:

Configuring the Altcraft Resource

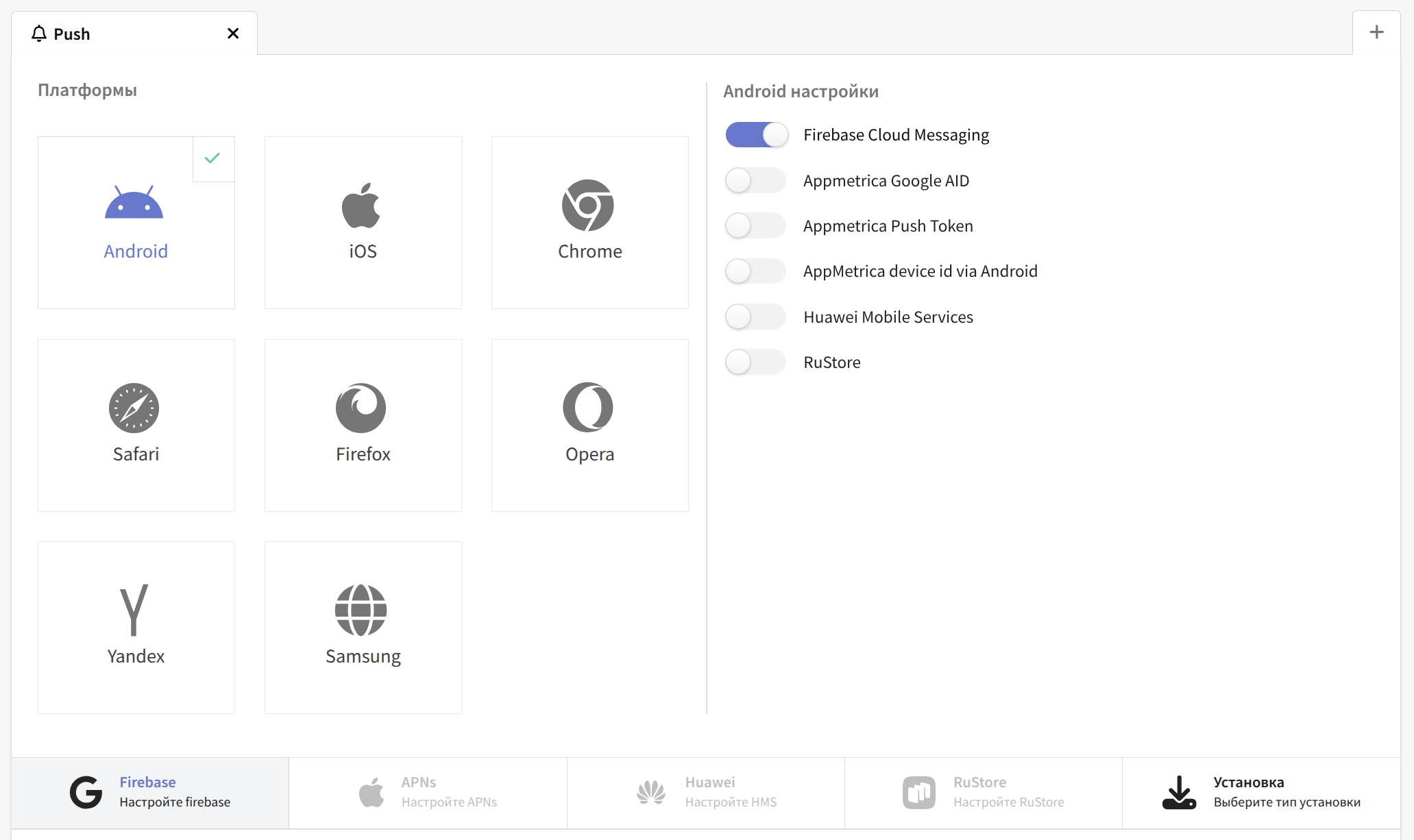

In the Altcraft platform, create a resource or add a new communication channel — Push — to an existing one. In the resource settings, select the Android platform and enable the Firebase Cloud Messaging toggle:

Then, scroll down to the Firebase settings section and specify your Project ID (messagingSenderId) and Sender ID (projectId). You must also upload the Firebase private key file (.json):

You can generate this Firebase file in Project settings → Service account in the Firebase console.

After making changes, don’t forget to save the resource.

Integrating FCM into the App Project

Manual Integration

Move the downloaded google-services.json file to the root directory of your app module (app):

Then add the necessary plugins and dependencies to your Gradle files:

build.gradle.kts (project level)

Add the google-services plugin to the project-level build.gradle.kts file:

    plugins {
        id("com.google.gms.google-services") version "4.4.3" apply false
    }

Note

Information about the latest plugin version is available here.

build.gradle.kts (app level)

Add the google-services plugin to the app-level build.gradle.kts file:

    plugins {
        id("com.google.gms.google-services")
    }

Also add dependencies:

Using firebase-bom (automatically manages Firebase library versions)

    dependencies {
        implementation(platform("com.google.firebase:firebase-bom:34.0.0"))
        implementation("com.google.firebase:firebase-messaging")
    }

Without firebase-bom

    dependencies {
        implementation("com.google.firebase:firebase-messaging:25.0.0")
    }

After adding the plugins and dependencies, sync your Gradle changes.

Automatic Setup in Android Studio

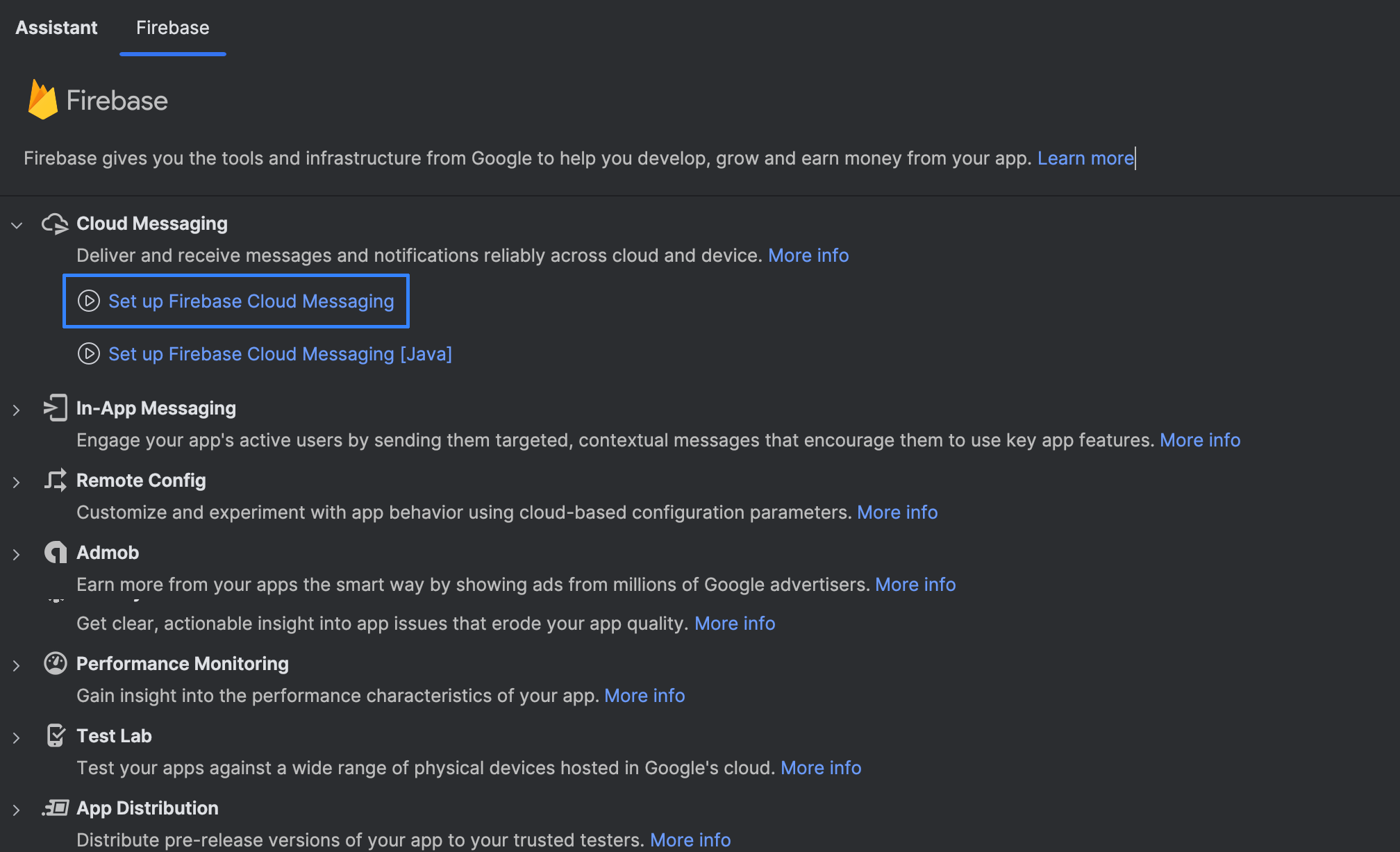

Navigate to Tools -> Firebase -> Cloud Messaging -> Set up Firebase Cloud Messaging:

Creating a Class Extending `FirebaseMessagingService()`

Create a class that extends FirebaseMessagingService():

import com.google.firebase.messaging.FirebaseMessagingService
import com.google.firebase.messaging.RemoteMessage

/**
 * FCM service for handling push tokens and messages.
 */
class FCMService : FirebaseMessagingService() {

    /**
     * Called when a new FCM token is generated.
     *
     * @param token The new FCM token.
     */
    override fun onNewToken(token: String) {
        super.onNewToken(token)
    }

    /**
     * Called when a push message is received.
     *
     * Forwards the message to all receivers with additional metadata.
     *
     * @param message The received [RemoteMessage].
     */
    override fun onMessageReceived(message: RemoteMessage) {
        super.onMessageReceived(message)

        // Message
    }
}

Updating the App Manifest

Add the FCMService declaration to your app’s AndroidManifest.xml file:

        <service
            android:name="com.altcraft.fcm.FCMService"
            android:exported="false">
            <intent-filter>
                <action android:name="com.google.firebase.MESSAGING_EVENT" />
            </intent-filter>
        </service>

Replace com.altcraft.fcm.FCMService with your own package and class name.
