Processing HTTP/HTTPS traffic

note

For a complete list of all configurable parameters, see the section - Configuration file. To apply changes to the platform configuration, restart AKD (./akd restart).

tip

To get free Let's Encrypt certificates, you can use the certbot utility.

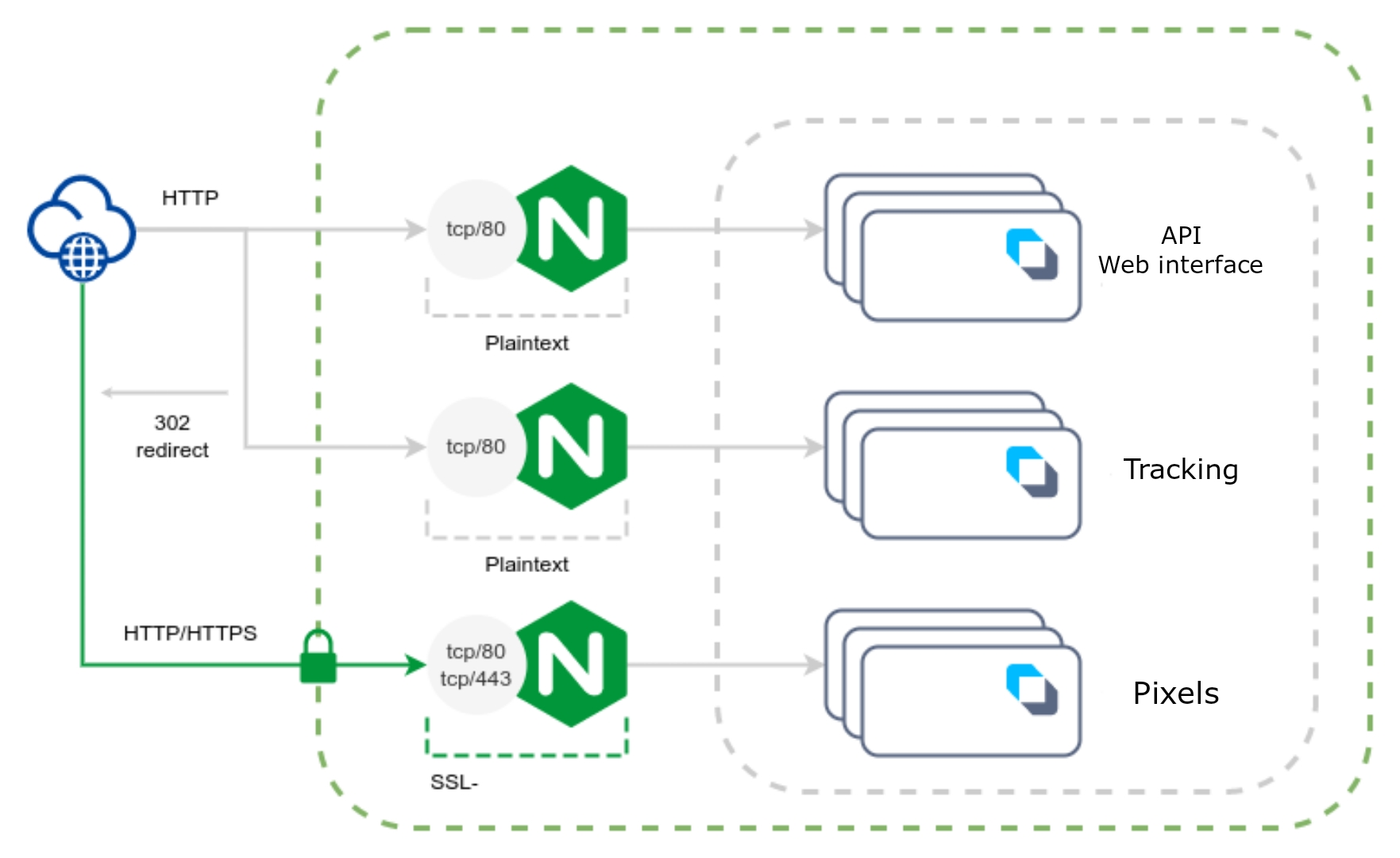

Default traffic processing scheme on the Altcraft side

By default, HTTPS is required for pixels to work and custom cookies to be processed. Setting the COOKIESAVER_SSL_ON parameter to false will not affect the presence of the https:// protocol in links generated by campaigns.

Required parameters

Parameter	Type	Value	Description
SSL_ON	bool	false	Disabling SSL termination for the web interface
TRACKING_SSL_ON	bool	false	Disabling SSL termination for tracking
COOKIESAVER_SSL_ON	bool	true	Enable SSL termination for pixels
COOKIESAVER_SSL_CRT_PATH	string	/etc/letsencrypt/live/pxl.example.com/fullchain.pem	Path to certificate for pixels
COOKIESAVER_SSL_KEY_PATH	string	/etc/letsencrypt/live/pxl.example.com/privkey.pem	Path to the private key to the certificate for pixels

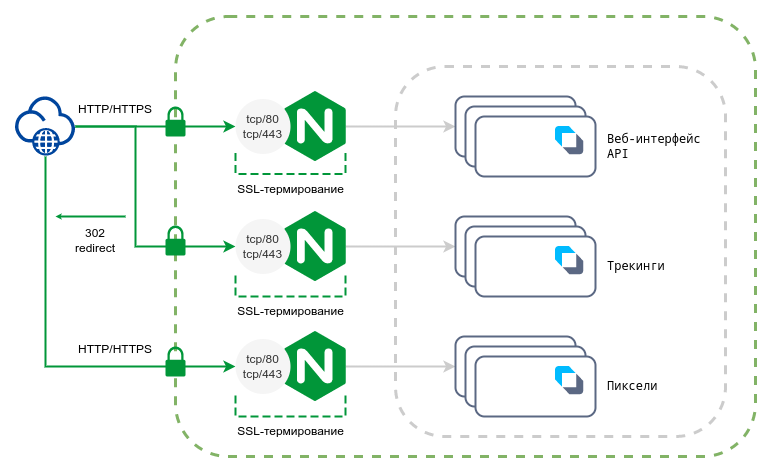

Scheme for processing traffic with full SSL termination on the Altcraft side

Required parameters

Parameter	Type	Value	Description
SSL_ON	bool	true	Enabling SSL termination for the web interface
SSL_CRT_PATH	string	/etc/letsencrypt/live/altcraft.example.com/fullchain.pem	Path to the certificate for the web interface
SSL_CRT_KEY	string	/etc/letsencrypt/live/altcraft.example.com/privkey.pem	Path to the private key to the certificate for the web interface
TRACKING_SSL_ON	bool	true	Enabling SSL termination for tracking
TRACKING_SSL_CRT_PATH	string	/etc/letsencrypt/live/click.example.com/fullchain.pem	Path to a trekking certificate
TRACKING_SSL_CRT_KEY	string	/etc/letsencrypt/live/click.example.com/privkey.pem	Path to the private key to the tracking certificate
COOKIESAVER_SSL_ON	bool	true	Enable SSL termination for pixels
COOKIESAVER_SSL_CRT_PATH	string	/etc/letsencrypt/live/pxl.example.com/fullchain.pem	Path to certificate for pixels
COOKIESAVER_SSL_KEY_PATH	string	/etc/letsencrypt/live/pxl.example.com/privkey.pem	Path to the private key to the certificate for pixels

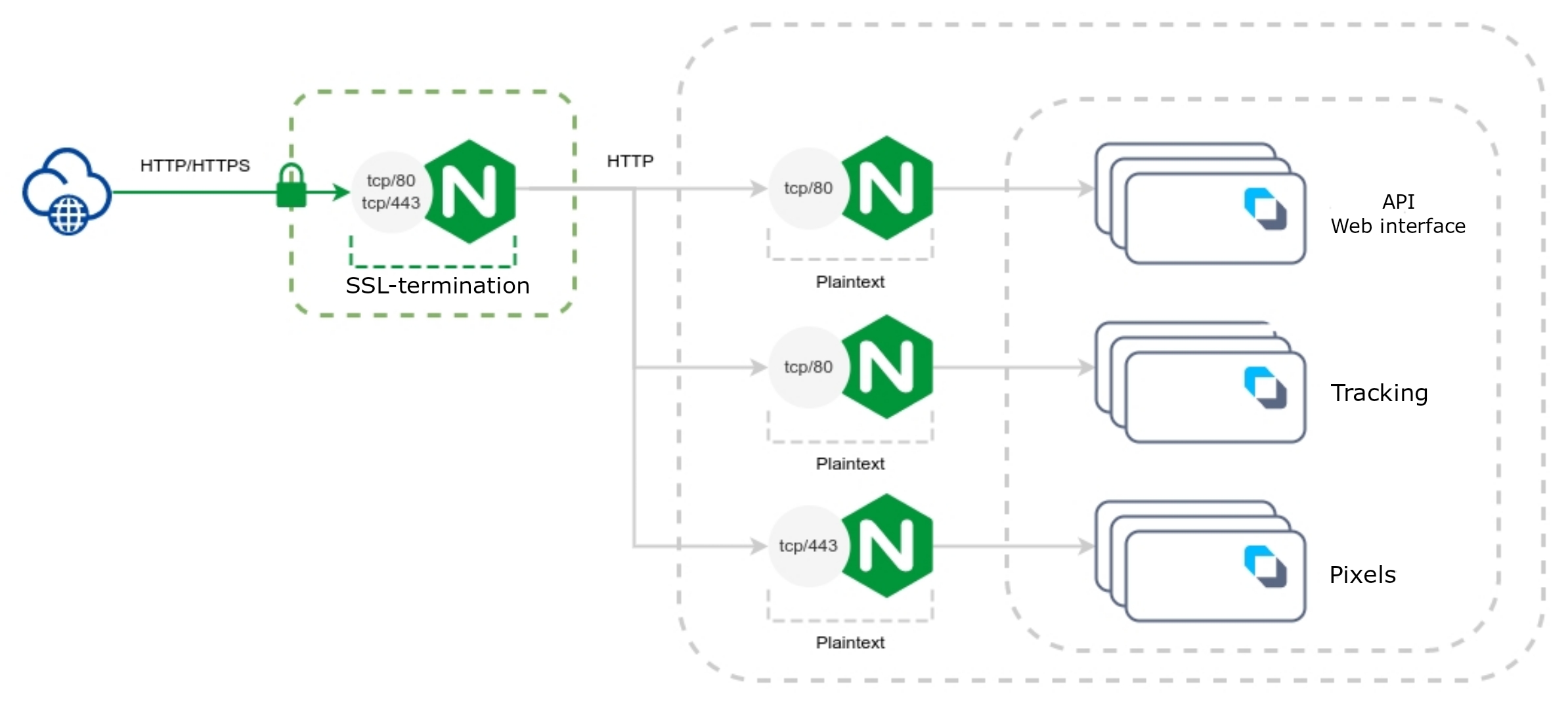

Traffic processing scheme with full SSL termination on the external side

Required parameters

Parameter	Type	Value	Description
SSL_ON	bool	false	Disabling SSL termination for the web interface
TRACKING_SSL_ON	bool	false	Disabling SSL termination for tracking
TRACKING_SSL_EXTERNAL_ON	bool	true	Setting the sign of using SSL termination at the top for tracking
COOKIESAVER_SSL_ON	bool	false	Disable SSL termination for pixels
NGINX_TRUSTED_PROXIES	array	[ "Внешний IP-адрес прокси" ]	List of trusted proxy IP addresses
NGINX_REALIP_HEADER	string	"X-Forwarded-For"	Header from which a real IP address of a client will be obtained

External NGINX Configuration Example


server {
    listen 80;
    listen 443 ssl;
    server_name altcraft.example.com;

    if ($scheme != "https") { return 307 https://$host$request_uri; }
    ssl_certificate /etc/letsencrypt/live/altcraft.example.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/altcraft.example.com/privkey.pem;

    ssl_session_cache shared:le_nginx_SSL:10m;
    ssl_session_timeout 1440m;
    ssl_session_tickets off;

    ssl_protocols TLSv1.2 TLSv1.3;

    location / {
        proxy_pass http://172.16.0.10:80;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header Connection "";
        proxy_set_header Host $host;
        proxy_http_version 1.1;
        proxy_read_timeout 900;
    }
}


server {
    listen 80;
    listen 443 ssl;
    server_name click.example.com;

    if ($scheme != "https") { return 307 https://$host$request_uri; }
    ssl_certificate /etc/letsencrypt/live/click.example.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/click.example.com/privkey.pem;

    ssl_session_cache shared:le_nginx_SSL:10m;
    ssl_session_timeout 1440m;
    ssl_session_tickets off;

    ssl_protocols TLSv1.2 TLSv1.3;

    location / {
        proxy_pass http://172.16.0.11:80;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header Connection "";
        proxy_set_header Host $host;
        proxy_http_version 1.1;
        proxy_read_timeout 900;
    }
}


server {
    listen 80;
    listen 443 ssl;
    server_name pxl.example.com;

    if ($scheme != "https") { return 307 https://$host$request_uri; }
    ssl_certificate /etc/letsencrypt/live/pxl.example.com/fullchain.pem;
    ssl_certificate_key /etc/letsencrypt/live/pxl.example.com/privkey.pem;

    ssl_session_cache shared:le_nginx_SSL:10m;
    ssl_session_timeout 1440m;
    ssl_session_tickets off;

    ssl_protocols TLSv1.2 TLSv1.3;

    location / {
        proxy_pass http://172.16.0.12:443;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header Connection "";
        proxy_set_header Host $host;
        proxy_http_version 1.1;
        proxy_read_timeout 900;
    }
}
